Large single-shaft shredder

Material through the hopper into the shredder, hydraulic push head in the hydraulic station drive the material to the cutter roller, cutter roller by motor, belt, pulley and reducer into the power system drive, blade using spiral arrangement cutting principle will tear material, knife by bolts fixed on the tungsten carbide cutter roller base, each knife has 4 cutting surface, after wear can be rotated to continue to use between the cutter and the cutter The gap can be adjusted by adjusting the bolt, when the equipment is running through the interaction between the knife and the fixed knife will tear the material, to ensure the uniformity of cutting, PLC program automatic control system, can automatically start and stop, overload automatic reverse control function, reduce the impact load of the main shaft, the material particles after shredding are discharged through the screen mesh, screen mesh aperture size determines the size of the discharge particles.

Category:

Description

Large Single shaft shredder  cloth machine head material crushing plastic rubber head nylon film ton bag wood crushing

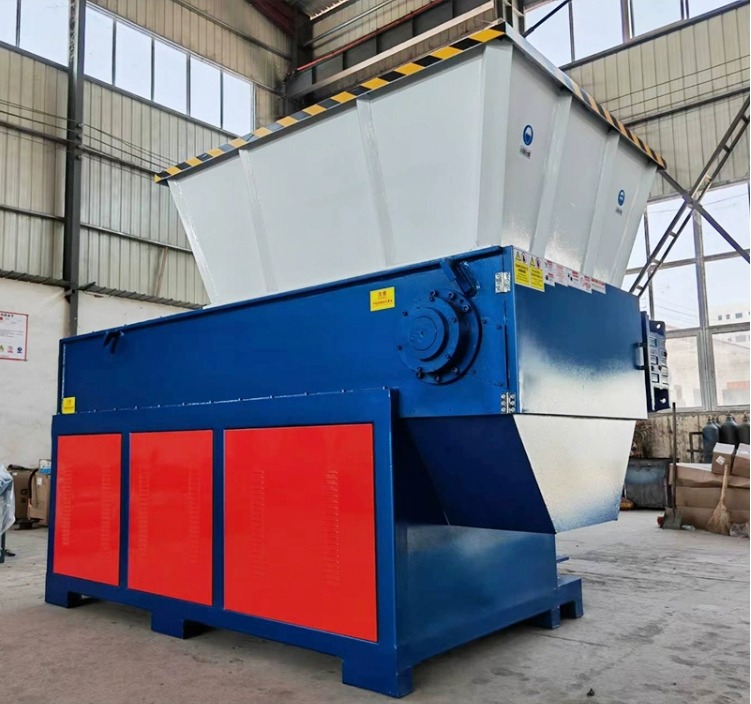

Hydraulically propelled single shaft shredder(Single shaft hydraulic shredder)

Product introduction:

Single-shaft hob shredder is suitable for processing high hardness, high toughness, strong winding, thin and light metal solid materials, such as: aluminum products, injection template, plastic products, head material, plastic head material, plastic film, nylon material, waste clothing, tires, wood and other crushing, the whole machine has stable crushing performance, smooth operation, low noise, large torque, high output, no blocking machine, Discharge size can be adjusted, easy to operate.

How it works:

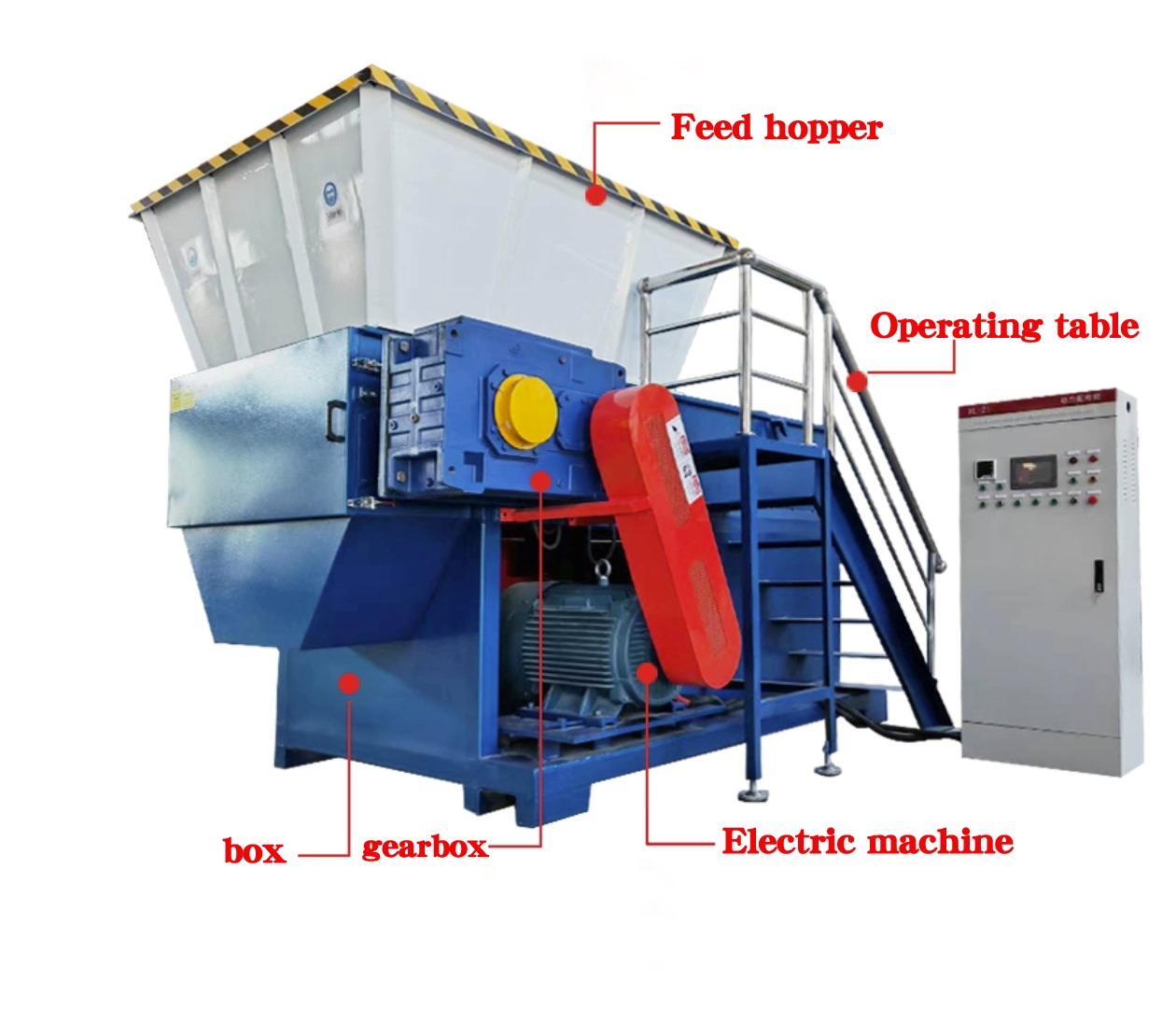

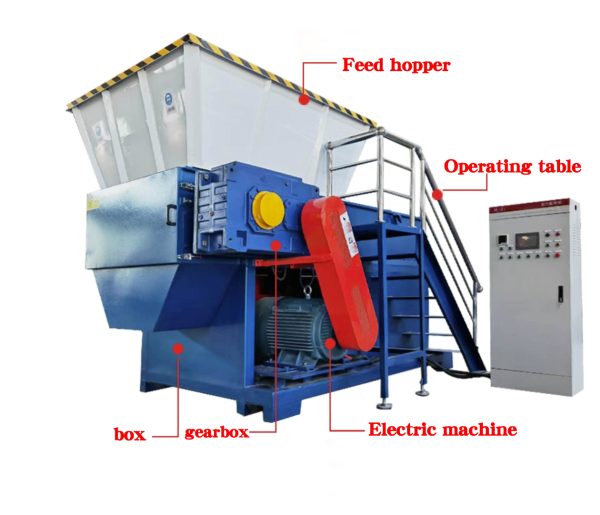

Material through the hopper into the shredder, hydraulic push head in the hydraulic station drive the material to the cutter roller, cutter roller by motor, belt, pulley and reducer into the power system drive, blade using spiral arrangement cutting principle will tear material, knife by bolts fixed on the tungsten carbide cutter roller base, each knife has 4 cutting surface, after wear can be rotated to continue to use between the cutter and the cutter The gap can be adjusted by adjusting the bolt, when the equipment is running through the interaction between the knife and the fixed knife will tear the material, to ensure the uniformity of cutting, PLC program automatic control system, can automatically start and stop, overload automatic reverse control function, reduce the impact load of the main shaft, the material particles after shredding are discharged through the screen mesh, screen mesh aperture size determines the size of the discharge particles.

Working conditions: Voltage 200-480V±10%, power frequency 50Hz/60Hz (working voltage, frequency if there is a special need, please inform in advance)

1.Strong body: High strength body, strong and durable

2.High efficiency: high automation and efficiency of the unit

3.The ordering of this cutter and knife is suitable for the production needs of high hardness and toughness materials such as aluminum thin shredder head material.

4.The ordering of this cutter and knife is suitable for the shredding production needs of winding thin materials such as non-woven plastic film fishing nets.
